9 × 3 m
Tini S
Bedroom, living and kitchen resolved in a single 17.97 m² space, opened up by floor-to-ceiling glazing, with a compact bathroom. The most home you can fit in one 9×3 m module.
- Bedroom–Living–Kitchen
- 17.97 m²
- Bathroom
- 3.01 m²
TU S: one-room modular home, 9×3 m

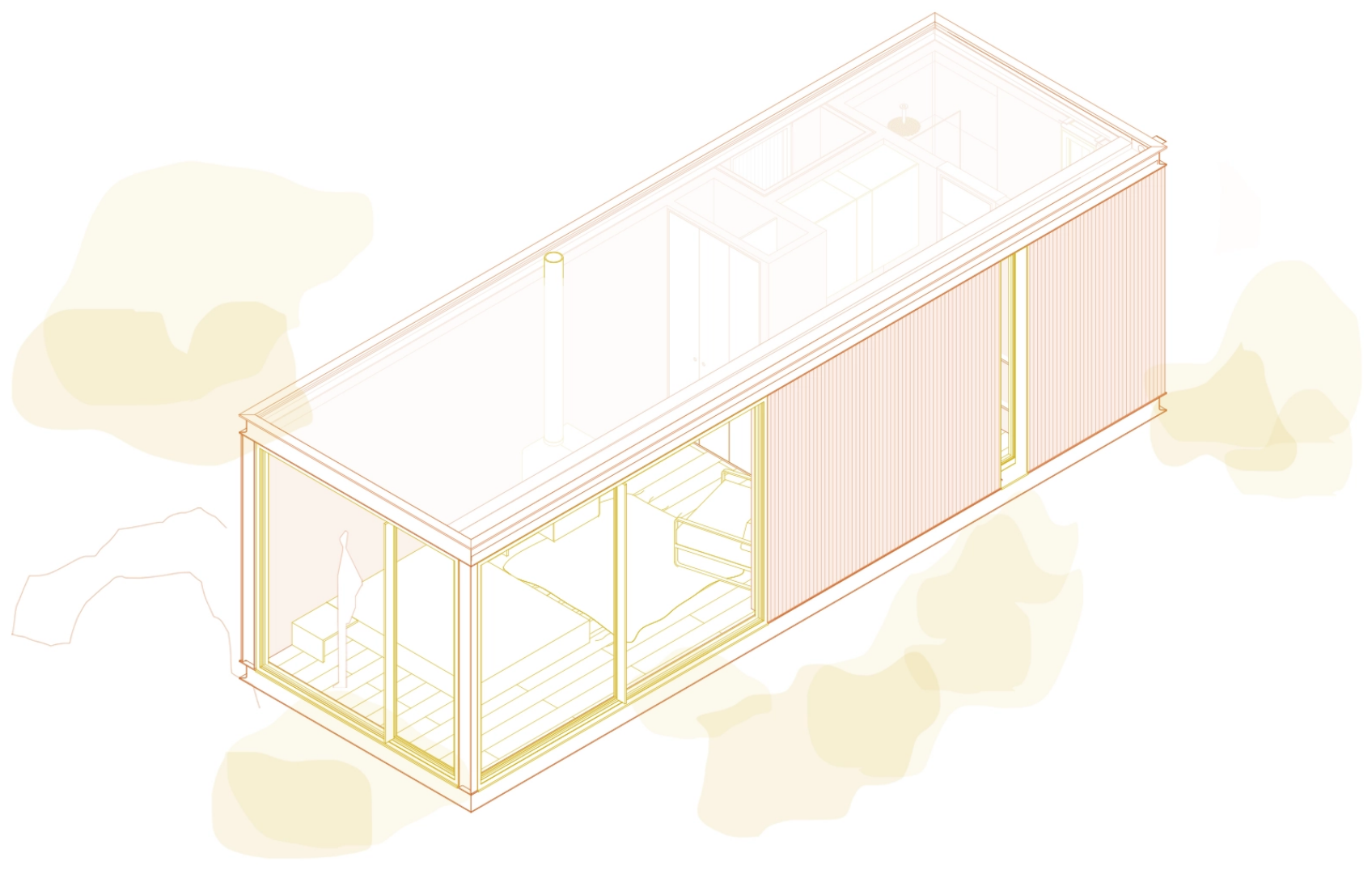

Loading 3D model…

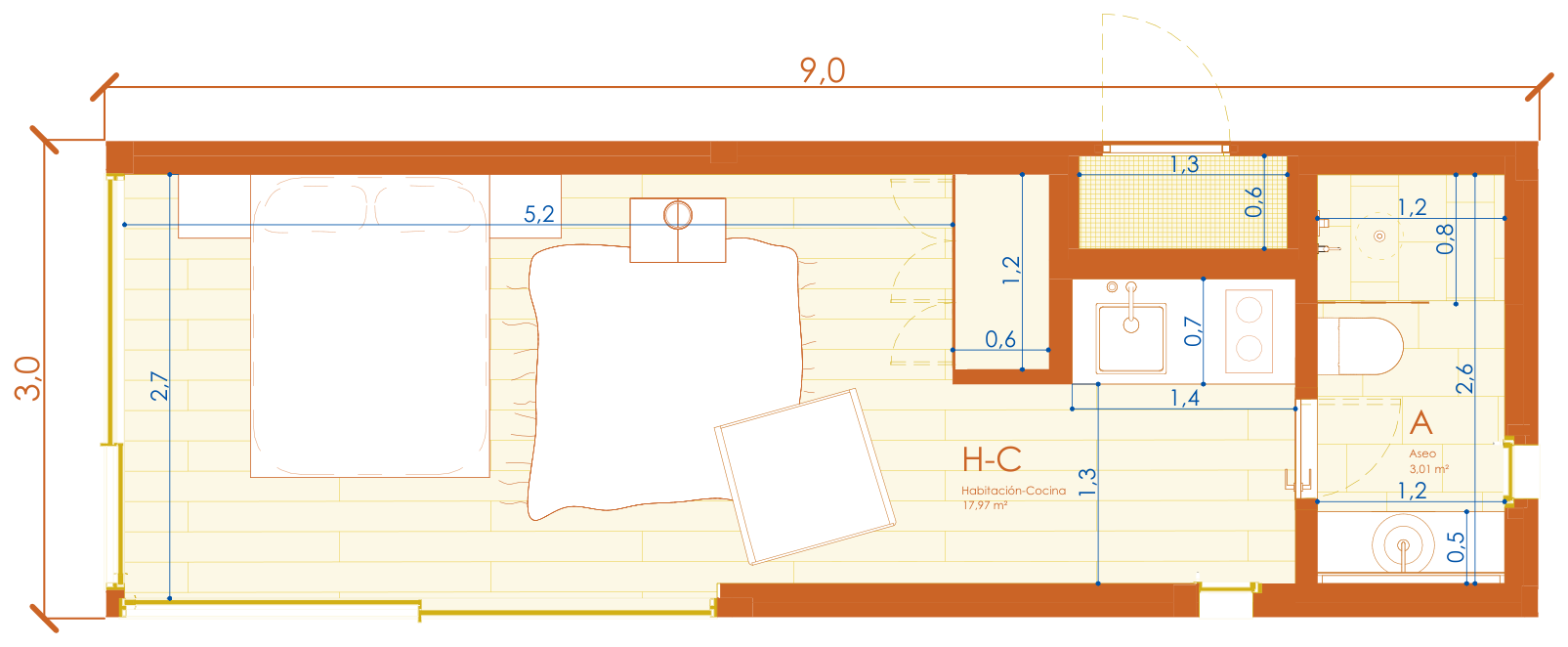

Official drawings
The plan, to the centimetre
One 9×3 m module, one open room: bed, living and kitchen together, with a compact bathroom. Every dimension below is taken from the official drawings, not a render.
- Bedroom–Living–Kitchen
- 17.97 m²
- Bathroom
- 3.01 m²
Materials & qualities
The Tini Unit build
One construction system, named where it counts.
- Lacunza wood stove
- The cast-iron Ocean, A+ class. Optional wood-stove heating.
- Cortizo aluminium
- Full-height, thermally-broken carpentry: COR-VISION sliders and COR-70 hidden-leaf casements, with Planitherm low-E double glazing.
- Geberit & solid surface
- Wall-hung WC with concealed cistern; a solid-surface top with integrated basin, walk-in shower and an LED-lit mirror.
- Faro Barcelona light
- No ceiling downlights. Warm 2700 K, indirect and integrated; Santa & Cole on special projects.
- Steel, wrapped tight
- Steel modules 3 m wide, up to 12 m long; a whole-envelope U 0.14 W/m²K.
- Exterior finishes (7) corten, burnt wood, Viroc, thermo-treated boards, steel, render
- Interior walls (6) pine / birch / okume plywood, spruce board, painted, bamboo
- Floors (3) natural oak, 30×60 ceramic in wet zones, cork
- Roof flat; gravel or green; walkable
- Kitchen custom fronts · AEG · Balay · Bosch · Samsung · Teka
- Climate AC, wood stove or aerothermal, underfloor-ready

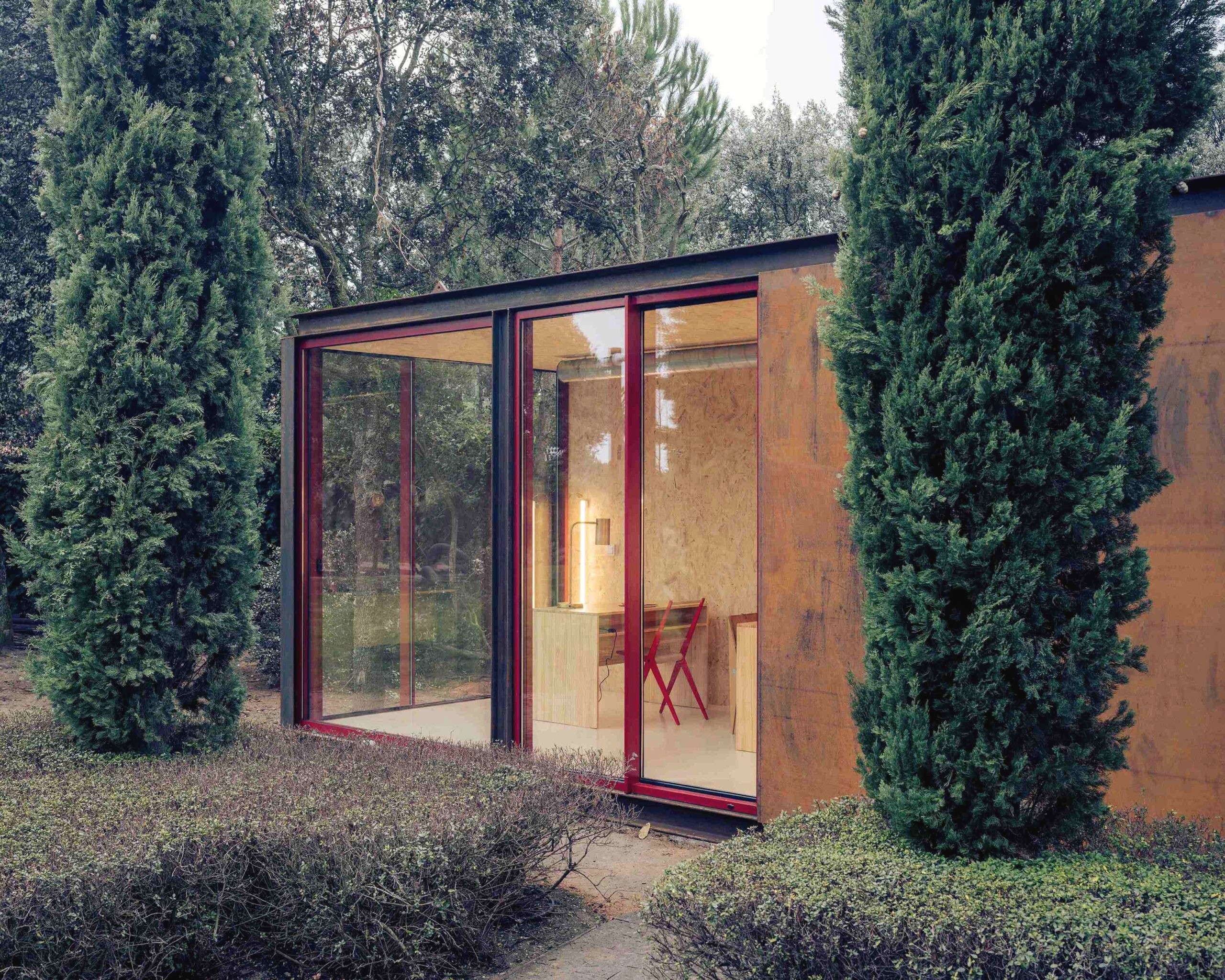

Real builds
Open the gallery
Explore the finished projects
The offer, fixed
What's fixed before we start
- Closed price
- Fixed by contract when production starts. The number you see is the number you pay.
- Permits handled
- Feasibility, design, technical documentation and licensing, managed by the team. A 100% legal dwelling (obra mayor licence, not a mobile home), on a foundation designed by the team.
- 120 days
- Guaranteed construction time, in our own factories.
- From 1 day on site
- Single-module installation from one day; finishing works take about 7 to 10 days.
- Within 250 km
- Transport & installation included within 250 km of Madrid. Beyond that, quoted case by case.
No price is printed here because there isn't just one: yours builds live in the Personalizador as you choose, and is fixed by contract before we start.
Questions people ask about the TU S
How many rooms does the TU S have?
One open space of 17.97 m² holding the bed, the living area and the kitchen, plus a separate bathroom of 3.01 m². It's a complete one-room home in a single 9×3 m module.
Does the TU S have a kitchen?
Yes. A custom kitchen is integrated into the main room, with plywood or lacquered fronts and a standard or premium appliance pack (AEG, Balay, Bosch, Samsung, Teka).
Is the TU S bigger than the TU XS?
Yes. 9×3 m and 27 m² versus the XS's 6×3 m and 18 m². The S resolves bed, living and kitchen in one comfortable room; the XS is either a guest room or a compact studio.
I want a separate bedroom. What should I look at?
The S is a single open room by design. For a separate bedroom, look at TU M (its TUM03 layout) in one module, or TU L, where the bedroom sits in its own wing.
Not sure S is your size?
- TU XS6 × 3 m A sleeping annex or a minimal home with kitchen. 2 layouts.
- TU S9 × 3 m You're here · bed, living and kitchen in one open room.
- TU M12 × 3 m One module, three ways to live in it. 3 layouts.
- TU L12×3 + 3×4 m Two modules in an L, the bedroom in its own wing. 2 layouts.
One room. One module. Your price, live.
Configure your TU S in the Personalizador, choose your finishes and see your closed price build itself as you go.
